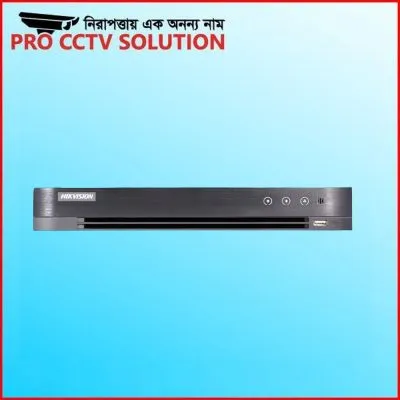

Hikvision DS-7216HQHI-K1 16 Channel Turbo HD DVR

Description

Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding resolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame rateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video bit rate32 Kbps to 6 Mbps
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Audio compressionG.711u
• Audio bit rate64 Kbps

Video and Audio

• IP video input8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputPAL/NTSC
• Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output1-ch, RCA (Linear, 1 KΩ)
• Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback16-ch
• HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
• VGA/HDMI outputVGA: 1-ch, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,
• CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,

Auxiliary interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm in/outN/A
• USB interfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
• Serial interfaceRS-485 (half-duplex)

General

• Power supply12 VDC
• Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working humidity10% to 90%
• Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weights (without HDD)≤ 2 kg (4.4 lb)
• Consumption (without HDD)≤ 25 W
