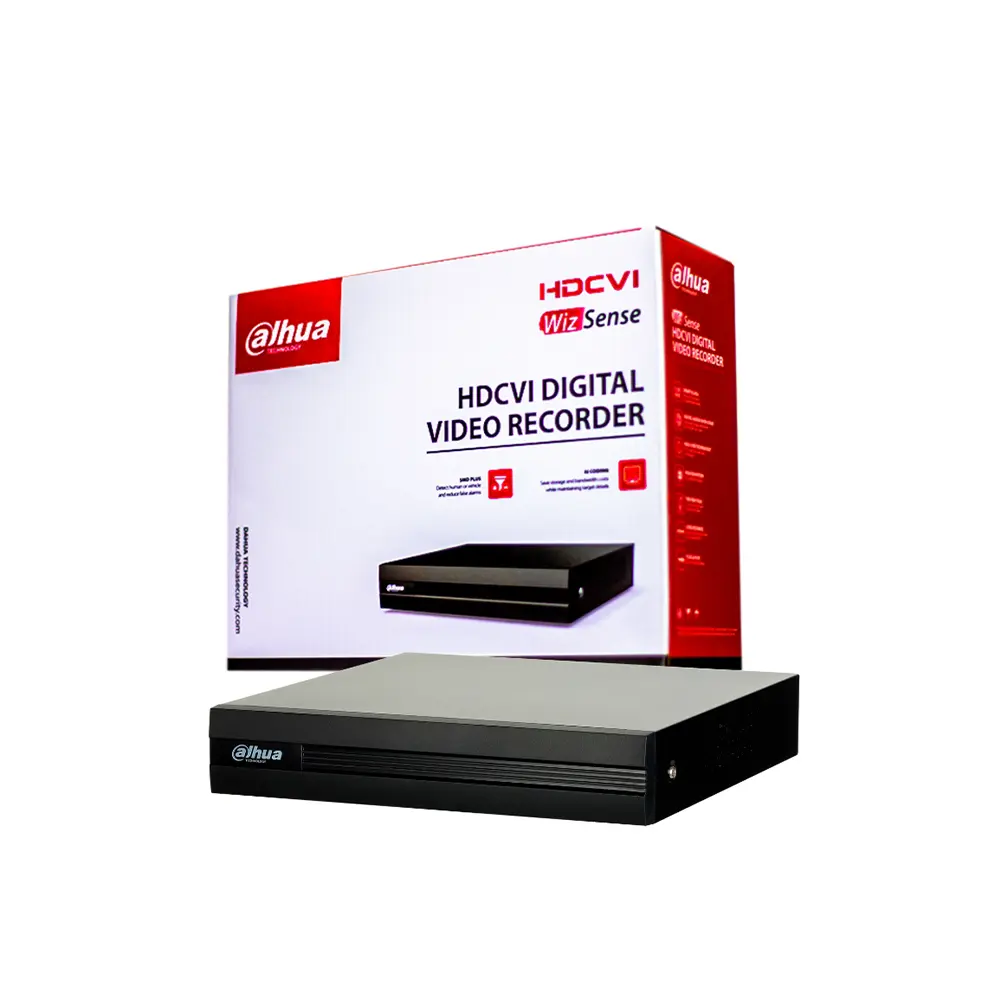

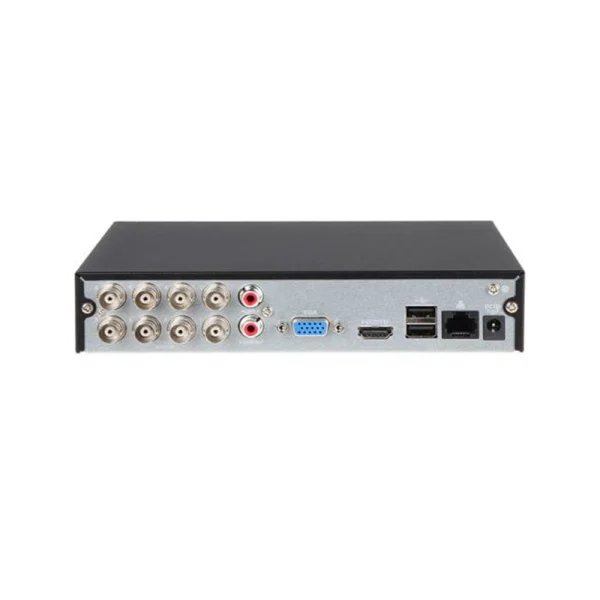

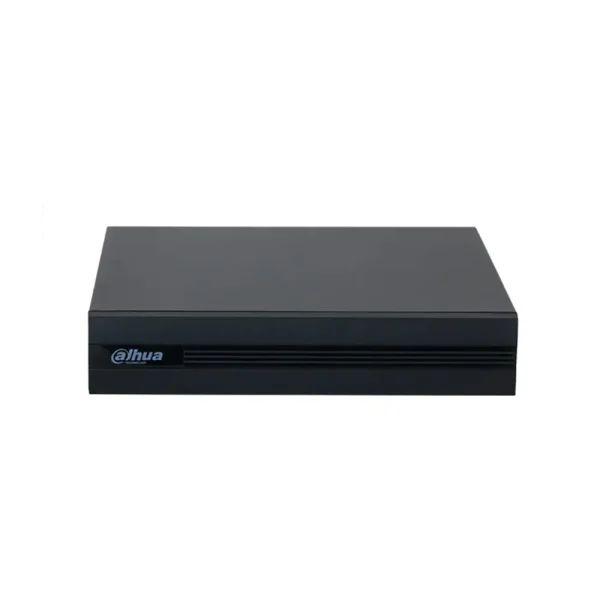

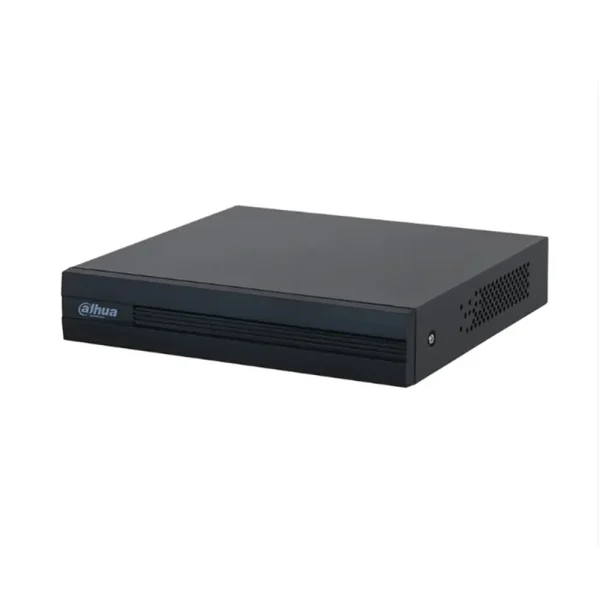

DAHUA XVR1B08-I 8 Channel Penta-brid 1080N/720p

System:

Main Processor:

Embedded processor

Operating System:

Embedded Linux

SMD Plus:

Performance:

4 channels

AI Search:

Search by target classification (Human, Vehicle)

Video and Audio:

Analog Camera Input:

8 channels, BNC

HDCVI Camera Input:

1080p@ 25/30 fps, 720p@25/30 fps

AHD Camera Input:

1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera Input:

1080p@25/30 fps, 720p@25/30 fps

CVBS Camera Input:

PAL/NTSC

IP Camera Input:

8+2 channels, each channel up to 6MP

Audio In/Out:

1/1, RCA

Two-way Talk:

Reuse audio in/out, RCA

Recording:

Compression:

AI Coding/H.265+/H.265/H.264+/H.264

Resolution:

1080N; 720p; 960H; D1; CIF

Record Rate:

Main Stream:

8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps)

Substream:

8-channel: CIF (1 fps–7 fps)

Bit Rate:

32 kbps–4096 kbps per channel

Record Mode:

Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop

Record Interval:

1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s

Audio Compression:

G.711A; G.711U; PCM

Audio Sample Rate:

8 kHz, 16 bit per channel

Audio Bit Rate:

64 kbps per channel

Display:

Interface:

1 HDMI; 1 VGA

Resolution:

1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display:

When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

OSD:

Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Network:

Interface:

1 RJ-45 Port (100 Mbps)

Network Protocol:

HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access:

128 users

Smart Phone:

iPhone; iPad; Android

Interoperability:

ONVIF 16.12, CGI Conformant

Video Detection and Alarm:

Trigger Events:

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips

Video Detection:

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input:

N/A

Relay Output:

N/A

Playback and Backup:

Playback:

1/4/9

Search Mode:

Time/Date; Alarm; MD and Exact Search (accurate to second)

Playback Function:

Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode:

USB Device/Network

Storage:

Internal HDD:

1 SATA port, up to 6 TB capacity

eSATA:

N/A

Auxiliary Interface:

USB:

2 USB ports (USB 2.0)

RS485:

N/A

RS232:

N/A

Electrical:

Power Supply:

DC 12 V/1.5 A

Power Consumption

(Without HDD):

< 7 W

Construction:

Dimensions:

Cooper 1U, 198 mm × 202.9 mm × 41.5 mm

(7.81” × 7.99” × 1.63”)

Net Weight

(without HDD):

0.62 kg (1.37 lb)

Gross Weight:

1.13 kg (2.49 lb)

Installation:

Desktop installation

Environmental:

Operating Conditions:

–10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH)

Storage Conditions:

–20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)

Third-party Support:

Third-party Support:

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications:

Certifications:

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
